Drive Screw Jointing

Im interested in screw jointing my drive, either switching for this season or for next season and wanted a broader look on it.

What are the pros and cons affiliated with it? How do i do it :skull:, its not a typical screw joint cause the metal isnt moving, right? how many people that have done it reccomend? Thanks and im impressed by this new forum :fire:

1 Like

Lower friction is the main reason most people use screw joints on their drive. Because a screw is a cylinder, wheels and gears can freespin on it very smoothly. Along with this screw joints can also be used to add rigidity to your drive base, connecting one side c channel to the other and making the entire structure flex less.

For cons, it can be a bit difficult to build if you are new to the idea of screw joints I guess, at least compared to just using axles, but realistically there arent any cons that I can think of rn.

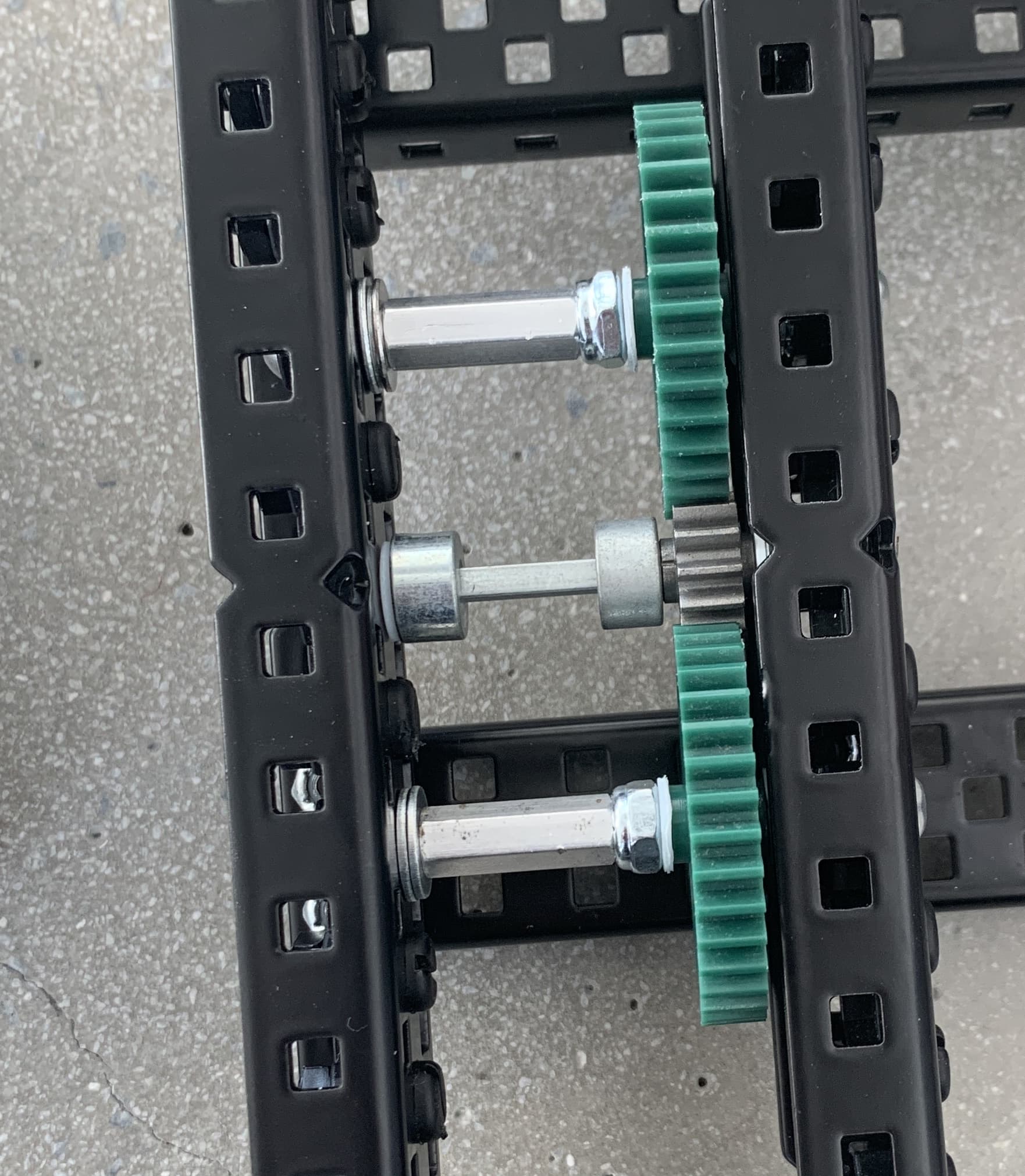

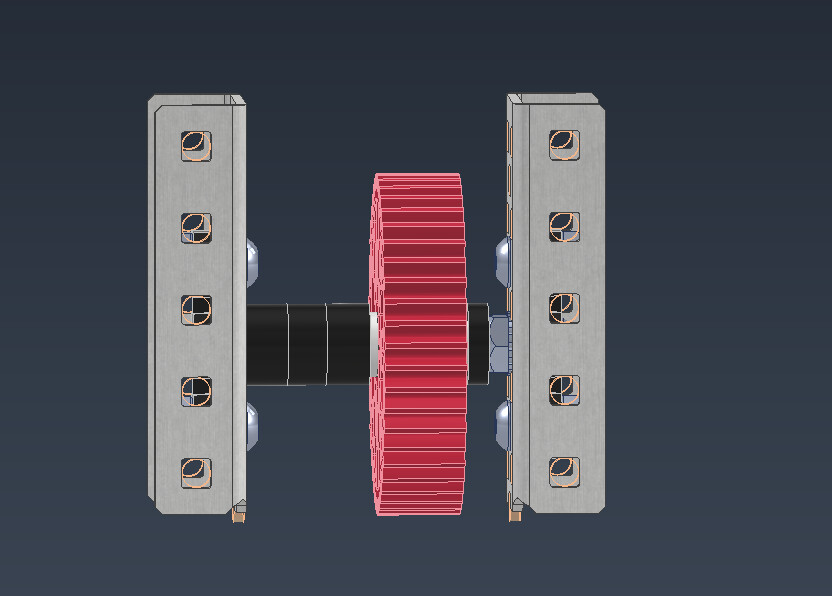

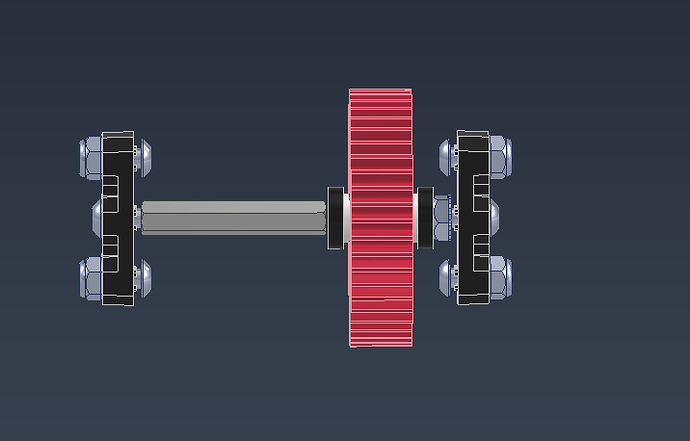

There’s actually multiple ways to do it, for gears a popular way is to have a standoff on one side (see picture), but you can also just have a screw going all the way through from one c channel to the other and add spacers to keep things from moving, the same way as you would use a shaft


Hi, this is my first year and I attempted to do screw joints on my robot. Everything was fine until the competition, the drive train was pulling 6 watts and the screws would loosen and rub on the gears. Eventually, the motors overheated.

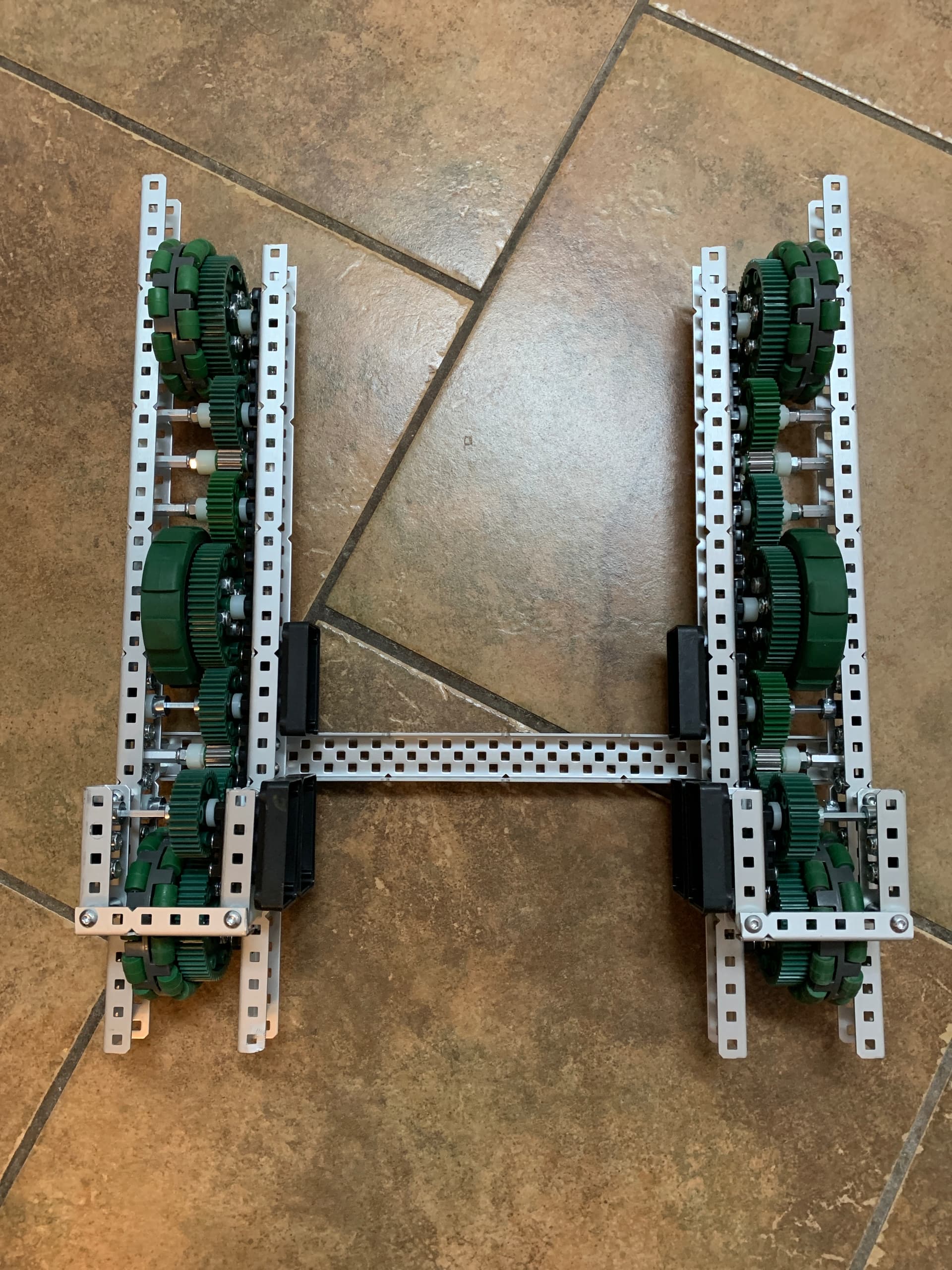

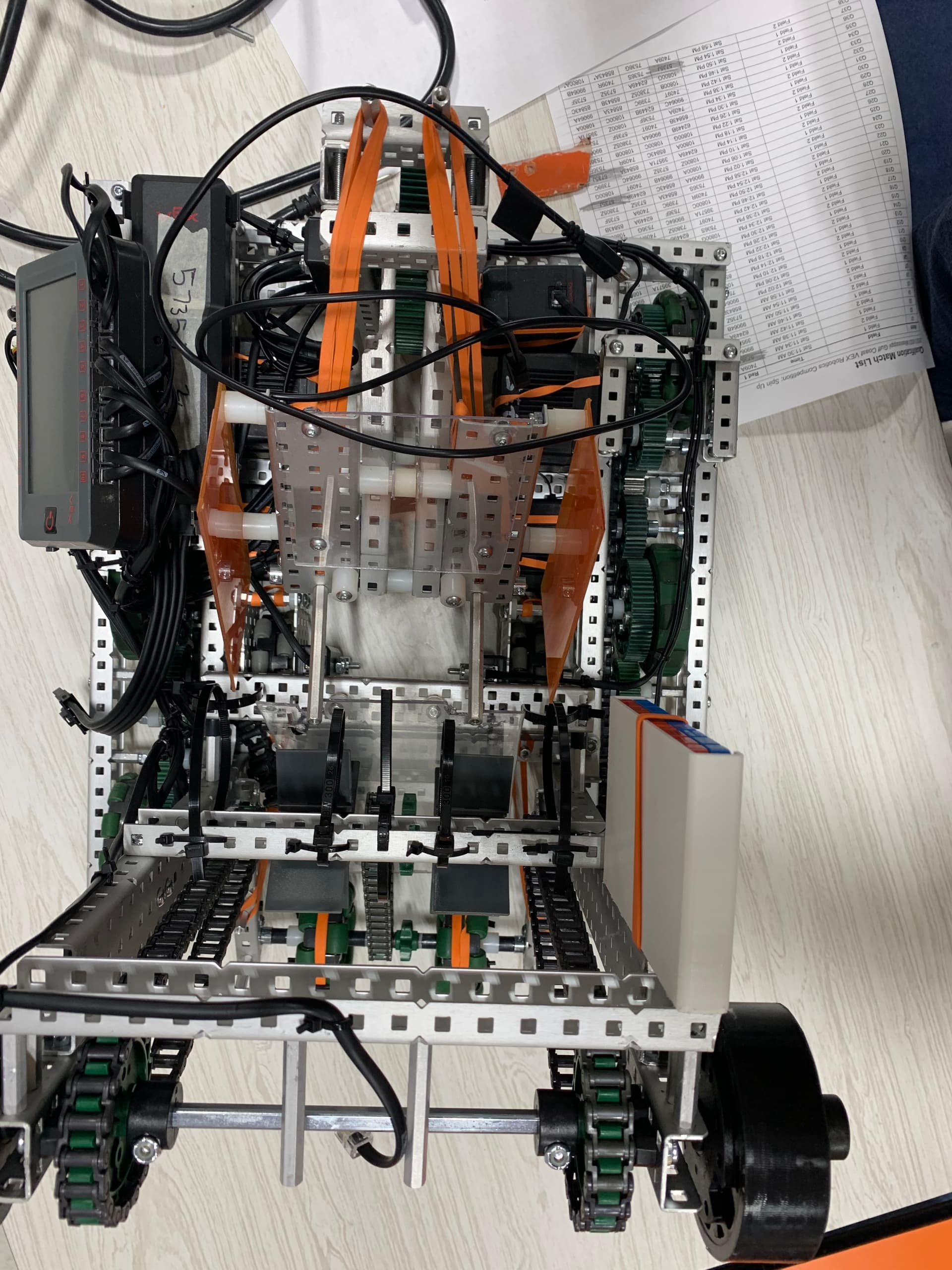

Picture of Drivetrain

Is this is build quality issue? Also is there any way to prevent this.

Edit: might be a skill issue tbh

1 Like

Do i need to make sure that the screw is loose and the the standoff can freely spin, or is that something only with shafts and spacers?

Just by quickly looking at it, you should add another crossbar for support, if you only have one the c channels can flex away from each other and cause friction. Because its only a picture of the drive base I hope that was included in the rest of the robot, but if not that’s something to add.

Besides that from this angle the screw joints themselves look fine, a top-down picture would be helpful to really see if there’s a problem, but it all looks ok.

Adding onto everything else, some other small improvements that can be made, 12tooth gears normally arent the best for drive bases (friction issues, but also I used it on my worlds robot and it had amazing friction, just takes time to get right), and having all of your motors in the back means there are 5 gears that need to transfer power to the front wheel, I would recommend moving a motor closer to the front just so everything spins nicer with motors connected


everything should be rigid, the wheel/gear free spins around the screw

1 Like

very interesting, what are the common do nots on a screw jointed drive train?

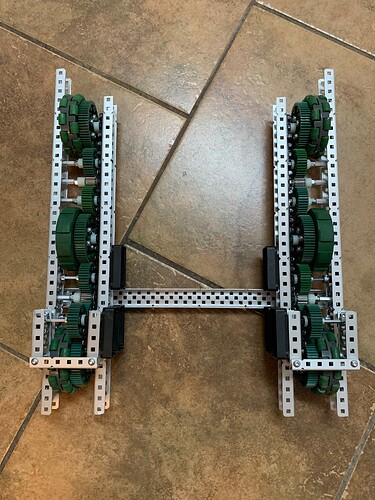

top down

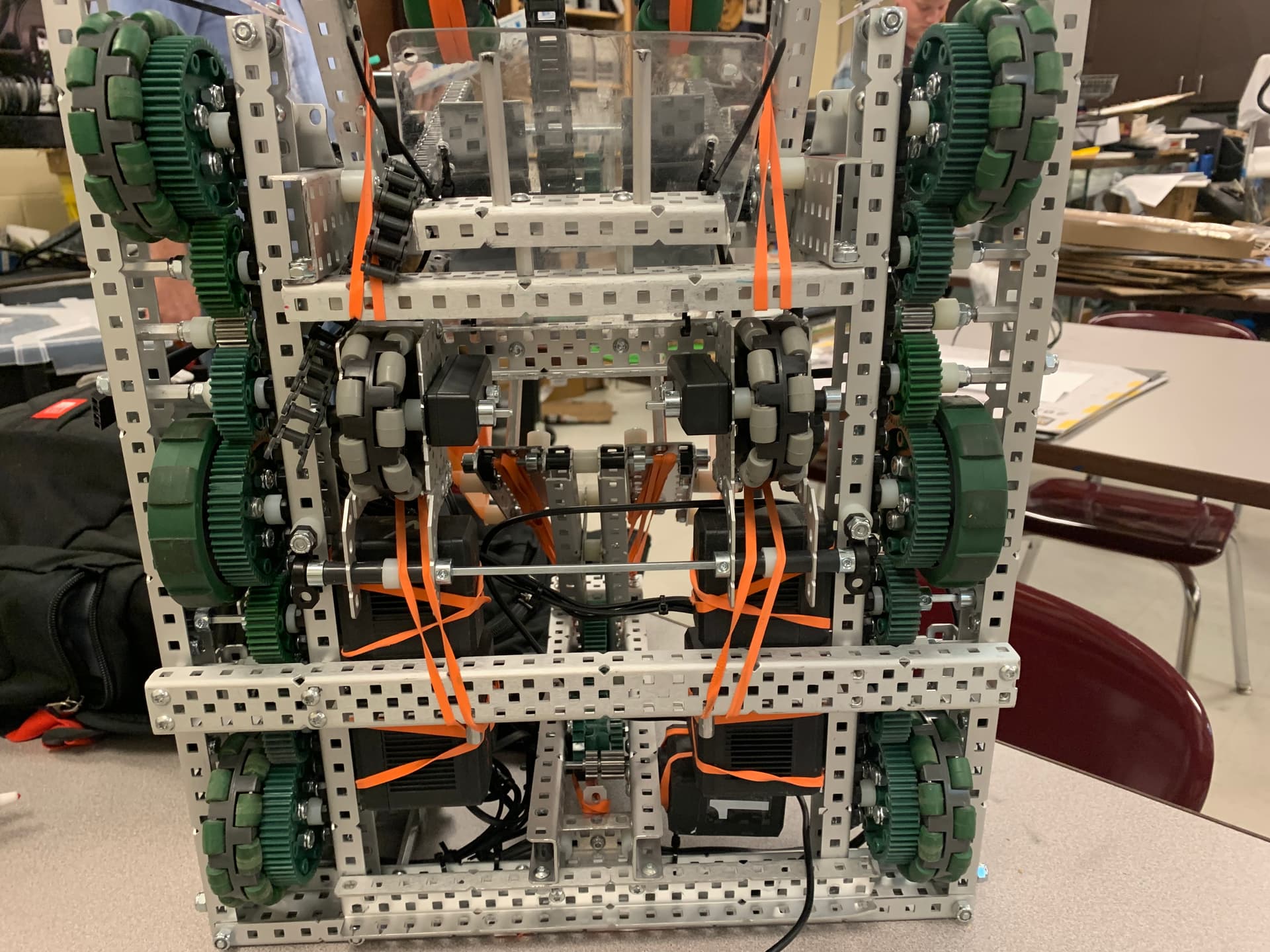

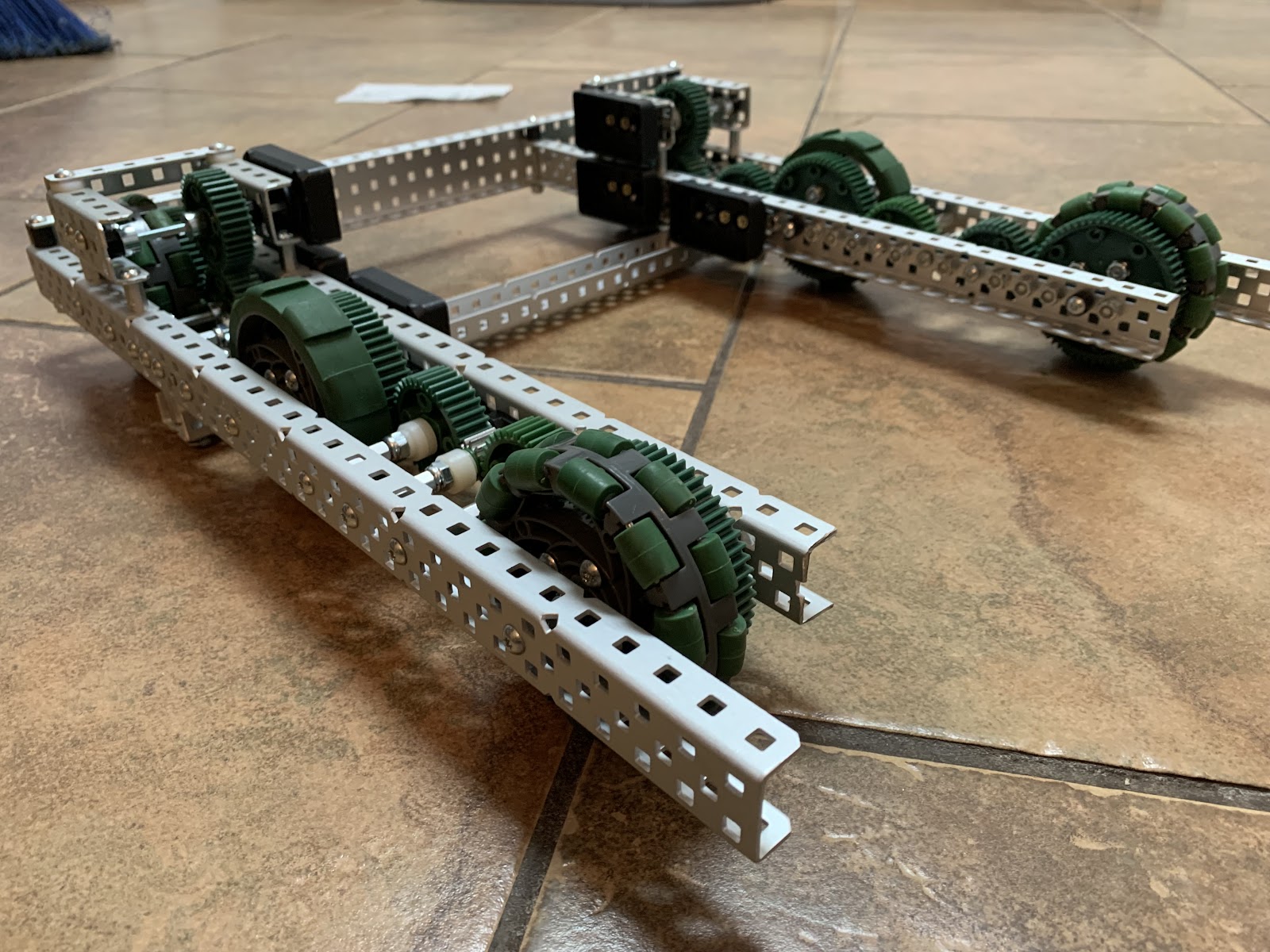

more pics

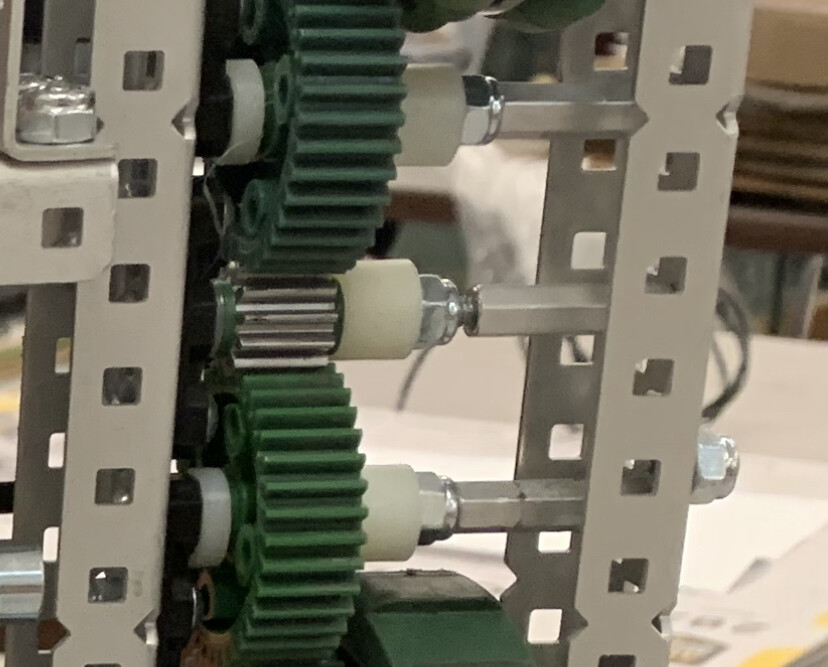

Despite being lock nut, they kept unscrewing in multiple places

pretty much the same as the do nots of a normal shaft based drive base. Don’t cantilever things, test your friction before finishing the drive base, make sure screws are tight and will hold in place (drive base vibrations can mess with this, use nylocks and you shouldn’t have a problem).
Then theres more general things like what I said in my other post:


1 Like

I was looking at the drive base and thought “The only potential problem I could see is the screw moving out from the standoff and forcing everything to rub into the bearing, but I doubt that would actually happen”… and then I opened the “issue” image lol.

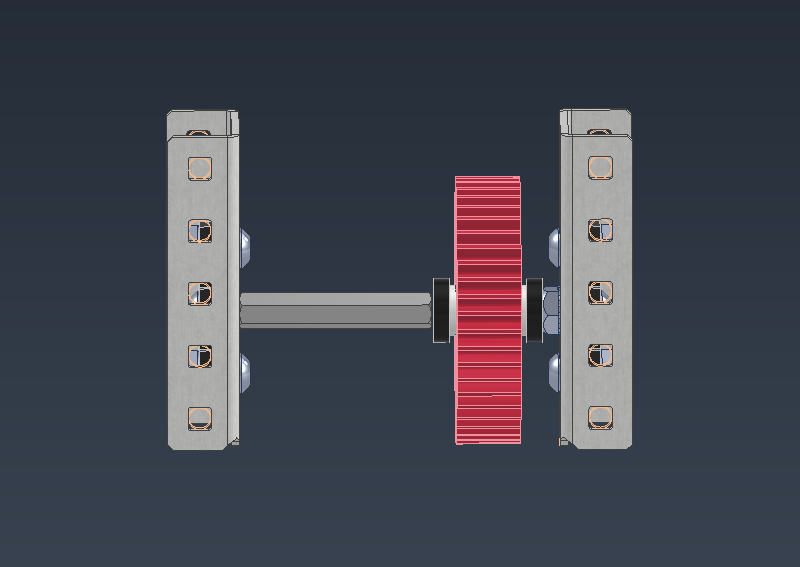

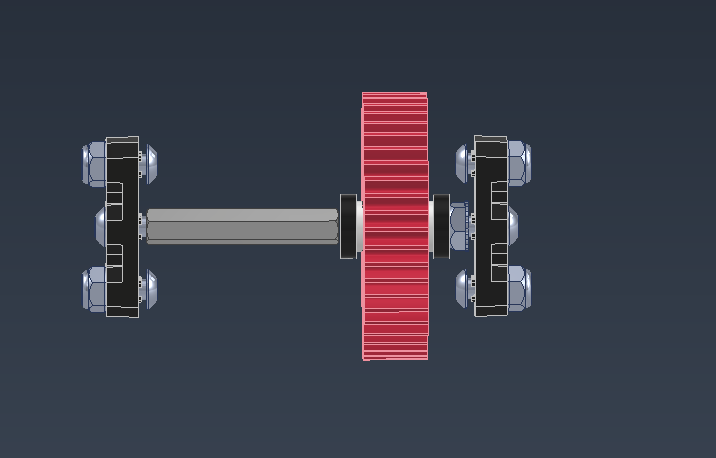

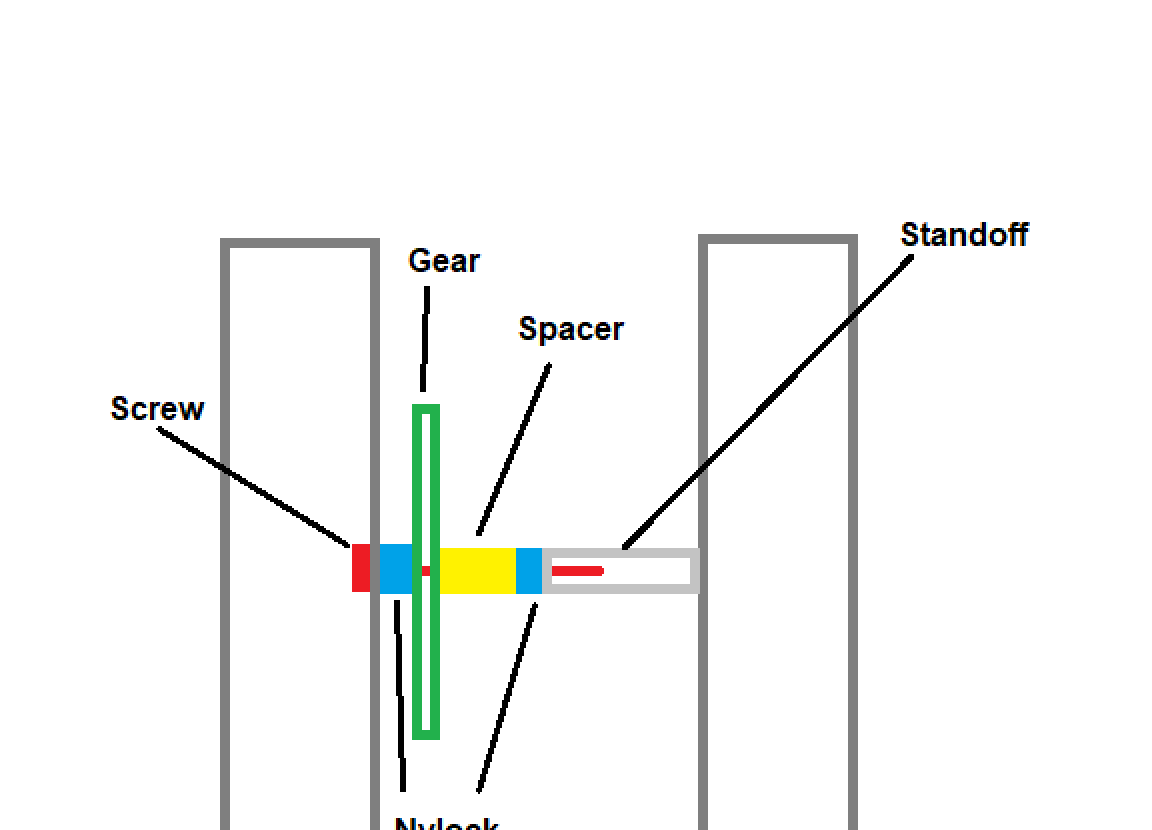

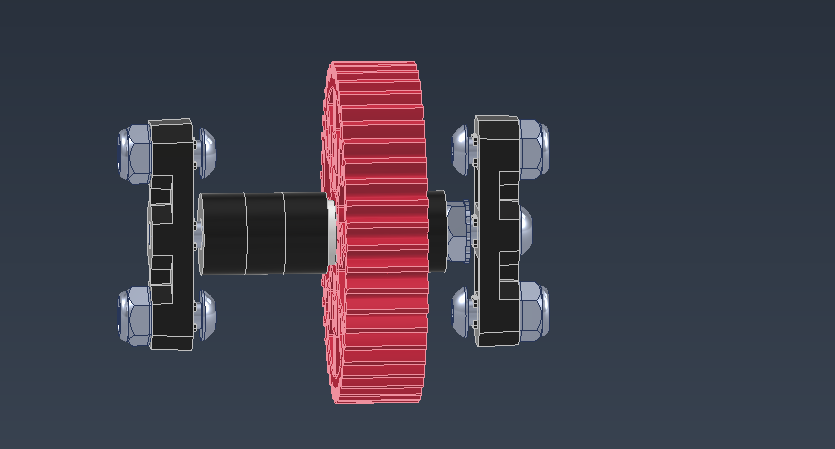

So yeah im 90% sure vibrations are the cause of this, which basically means the screw is slowly being rotated by either your catapult shooting or just general vibrations that are normal on a robot, you can fix this by having a nylock sandwiching the inner c channel to hold the screw in place so it doesnt move (I removed the bearing for this image because you shouldnt need it, screws should stay aligned in the center without one)

You can always add more spacers, washers, and stuff, but this is all the effort I want to put in lol


Thank you :pray:t5:

1 Like

You screw jointed wrong. The locknut should be against the channel itself, that’s what keeps a screwjoint from moving.

1 Like

This is the issue.
If your screw is not long enough to run through both channels, it should go:
screwhead-bearing*-c-channel-keps nut-spacer/washer-spinning thing-spacer/washer-nylock (optional)-standoff-c-channel-screwhead.

If it is, it should go:
screwhead-bearing*-c-channel-keps nut-spacer/washer-spinning thing-spacer/washer-bearing-c-channel.

*- the bearing is not necessary if the screw is a shoulder screw, which will center the screw perfectly in the c-channel hole.


How do you know if its a shoulder screw or not?

The shoulder screws you would use for a drive screw joint can be found here:

Basically, shoulder screws have a slightly thicker, unthreaded portion at the top of the screw which fits perfectly into a c-channel hole and perfectly centers the screw. Highly recommend, robosource has a great price for them.
I suggest getting the color-coded large pack, and another pack or 2 of the red .5" 1-metal shoulder, I find that I use them a lot.


what about with a wheel ?? please help the 3 hole wide
